It is a liquid separator that signicantly reduces the level of Fat, Oil, and Grease ( FOG) in waste water euent – Typical FOG discharge is reduced from 18,500 ppm to 62 ppm!!
Through the use of a coarse food strainer, it prevents solids from entering the drain system
The GOSLYN TM is an immiscible liquid separator which operates under hydro static pressure and does not have any moving parts. Innovative (patent pending) technology has the capability to continuously and permanently remove Fats, Oils & Greases from waste euent.
It keeps drains free and clear while eliminating the need for costly dousing systems or grease trap pumping. It also removes the solid debris that gets past drain baskets. It is typically these solids, mixing with the fats, oils and greases, that cause the majority of drain blockages.
See our Product Spec Sheet here...

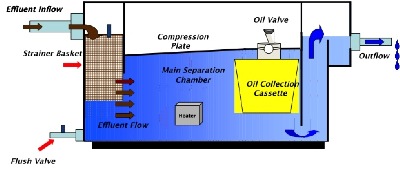

Stage 1: Waste Water (Effluent) Flow Control
Effluent flow rates are controlled by the sized inlet flow restrictor to maintain operating efficiency and to prevent effluent surges.
Stage 2: Food Removal
The effluent is channeled through a removable food strainer basket where unwanted food debris is automatically captured and retained.
Stage 3: Oil Separation
The Goslyn™ innovative oil separation chamber operates under hydrostatic pressure at 40°C / 104°F for highly efficient oil separation.
Stage 4: Oil removal
Hydrostatic pressure forces 99.6% of FOG out through the oil discharge valve into the oil cassette while "clean" water is discharged into the sewer system.
Stage 5: Daily 2 Minute Maintenance
Food waste solids are removed from the removable strainer basket to a separate food collection container for disposal and/or composting FOG is drained from the removable oil cassette to a separate oil collection container fro rendering or conversion to bio-fuel The manually controlled flush valve is opened for 5 to 10 seconds, flushing the solids that are too fine to be trapped by the strainer basket.
